- Accessories:
- T15 Kit x 1 ; T15 Main Blades x 1 set ; T15 Tail Blades x 1 set
- 15M Main Motor(1500KV/2405) x 1 ; 15MT Tail Motor(8000KV/1103) x 1 ; T15 Digital Servo x 2 ; T15T Digital Servo x 1
- Remote Extension x 1 ; Li-Po Battery 2S 380mAh 50C x 1 ; T15 Carry Box x 1
- 1.3mm Hexagon screw driver(Blue/8.2g) x 1 ; 0.9mm Hexagon screw driver(Red/8g) x 1 ; Feathering Shaft Wrench x 1 ; Parts box x 1

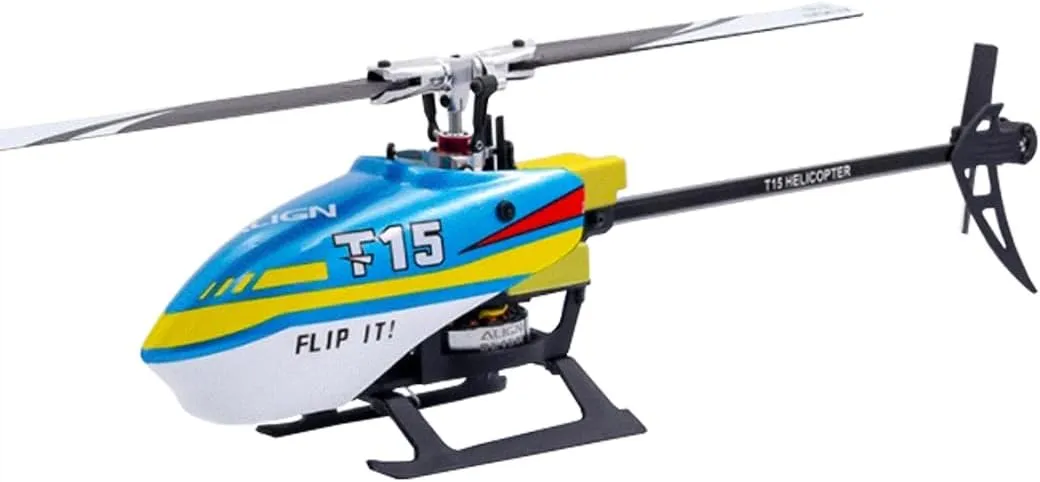

1. For Spektrum transmitter user: You will need an DSMX satellite with 2 antennas come out (SKU: SPM9645) for binding with your radio. Make sure your radio Frame Rate is set as 11ms before you binding. If you use the DSMX with 1 antennas come out (SKU: SPM9745), it will not bind. We addressed this problem with our manufacture and app developer. They will update and fix it soon. 2. For Futaba transmitter user: Before you binding your radio to the helicopter, please go to setting and update receiver boards. Make sure your radio protocol set as SFHSS. 3. For the JR sat (JR DMSS RA 01L), you have to rewire the cable to match with the sat output from the board. If you still can't bind with the T15, you can bind it from the separate receiver before you plug it in the T15. T15 Specification ? Length: 272mm ? Height: 85mm ? Main Blade Length: 120mm ? Main Rotor Diameter: 280mm ? Tail Rotor Diameter: 51mm ? Weight(Without Battery): 100g Selfprovided Equipment ALIGN T6 or Futaba SFHSS 2.4G Transmitter. For the use of JR and Spektrum system, require JR DSM2/DMSS, Spektrum DSM2/DSMX 2.4GHz Transmitter and Satellite.
