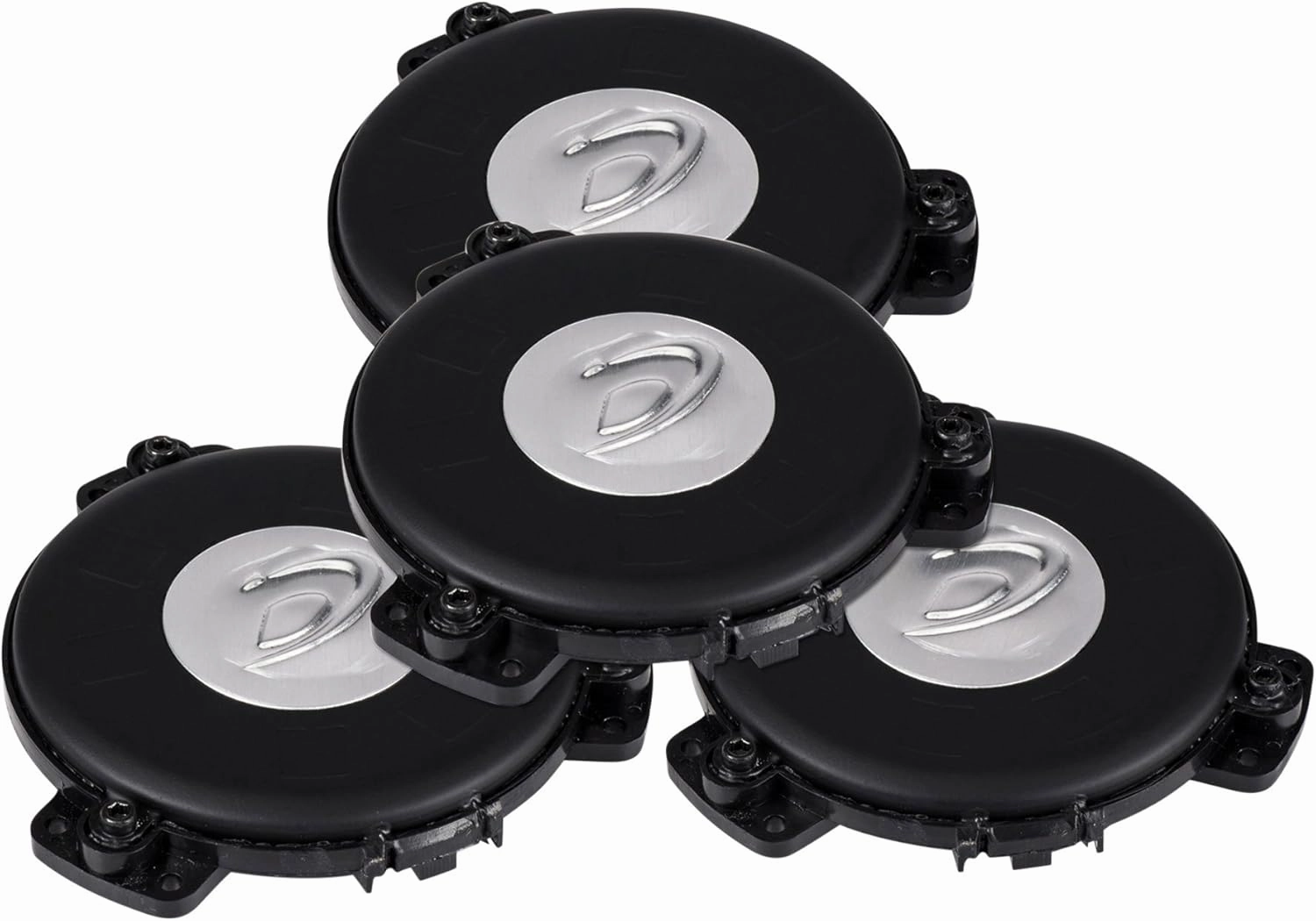

Quick Overview Get the Four-Puck-Pack and save! Boost the sensation of your favorite games, music and movies with the PUCK" by Dayton Audio. Product Highlights Add realistic tactile feedback to video games, movies, and music Feel the bass without high sound pressure levels High quality construction Many applications Mini Bass Shaker Product Manuals / Spec Sheets / Downloads Dayton Audio TT25-8 User Manual Dayton Audio TT25-8 Mechanical Drawing AddThis Sharing Buttons Share to FacebookFacebook Share to TwitterTwitter Share to MoreAddThis Product Description Dayton Audio TT25-8 PUCK Tactile Transducer Mini Bass Shaker 4 Pk The PUCK™ by Dayton Audio is an inexpensive, small tactile transducer otherwise known as a mini bass shaker that is intended to be used in Home Theater, Gaming, and Auto Sound applications. This mini bass shaker has the unique ability to transfer low frequency sound waves directly to the listener by mounting the PUCK™ to surface areas that a listeners body will come into contact with. Because the listener "feels" the low frequency, the volume of the overall sound can be kept to a minimum without sacrificing the audio quality. The PUCK™ measures a mere 3-1/2" diameter and 1" depth, nearly identical in size to an ice hockey puck. The small depth and diameter of the PUCK™ mini bass shaker make it uniquely suited for tight spaces and unobtrusive applications. 4 layer Voice Coil with 1" aluminum former. Four PUCK™ transducers can be wired for Stereo 8 Ohm Right/Left 2 channel wiring or as a 4 Ohm 1 channel system. Note: Requires 6 #6 wood or sheet metal screws for surface mounting. To simplify installation on flat surfaces our SMRK Surface Mounting Ring Kit allows you to mount the PUCK transducer without the need for a mounting hole. Specifications: • Power handling: 15 watts RMS/30 watts max • Impedance: 8 ohms • Fs: 40 Hz • Usable frequency response: 20 to 80 Hz • Force peak: 30 lbs. per ft. total when used in 4 PUCK configuration • Dimensions: 3-1/2" dia. x 1" H • Cutout: 70 mm with 25 mm slot for wire pass through • Consult owners manual for cut-out template and wiring information. To learn more about Dayton Audio Exciters, and for help on which Exciter is right for you, check out Dayton Audios Exciter & Tactile Transducers Buyers Guider. Product Details Speaker Series Tactile Transducers/Bass Shakers Model Number TT25-8 PUCK List Price $79.99 Color Black Unit of Measure Pack UPC 848791005411 Warranty - Parts 5 Years Warranty - Labor 5 Years Product Shipping Weight (lbs.) 3 Speaker Type Tactile Transducer Power Handling (RMS) 15 watts Power Handling (max) 30 watts Continuous Program Power -- Impedance 8 ohms Sensitivity -- Frequency Response 20 - 80 Hz Voice Coil Diameter 25 mm Magnet Weight -- DC Resistance (Re) -- Voice Coil Inductance (Le) -- Resonant Frequency (Fs) 40.0 Hz Mechanical Q (Qms) -- Electromagnetic Q (Qes) -- Total Q (Qts) -- Diaphragm Mass Inc. Airload (Mms) -- Moving Mass Of Diaphragm (Mmd) -- Mechanical Compliance of Suspension (Cms) -- Surface Area Of Cone (Sd) -- Volume of Displacement (Vd) -- BL Product (BL) -- Compliance Equivalent Volume (Vas) -- Maximum Linear Excursion (Xmax) -- Drivers Mechanical Losses (Rms) -- Cone / Diaphragm Material Tactile Transducer Entry / Exit Diameter -- Surround Material -- Voice Coil Wire Material -- Voice Coil Former -- Basket/Frame Material -- Magnet Material -- Overall Outside Diameter 85.7 mm Overall Depth 25.4 mm Baffle Cutout Diameter 70 mm Mounting Hole Diameter -- Bolt Circle Diameter -- Product Weight --
