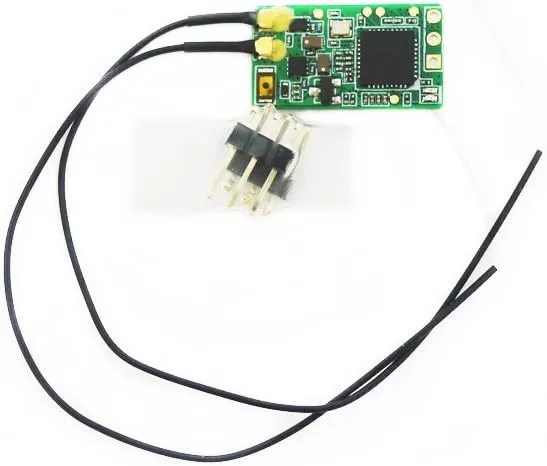

• It’s a full range receiver, similar range to X4R-SB and XSR, Much smaller size and lighter weight
• It’s possible to direct solder RX to FC with header pins without wires (if FC supports it)
• XM is even smaller than the LR1000 by FuriousFPV, great RX option for their micro quads (such as the Moskito70)
• Only downside of XM RX is the lack of S.Port full telemetry (Smart Port), there is only RSSI telemetry. RSSI has a dedicated solder pad and it’s also available on the 16th channel.
• RSSI pin outputs PWM signal (0-3.3V). Please be aware that this signal should not be connected to MinimOSD directly, as it will give you 0% or 100% only. You will need a digital to analogue converter (low pass filter) to convert PWM to analogue voltage level.
