- Transistor capacitor can measure and analyze the patch component, NPN, PNP, triode, MOS, field effect transistor (FET), diode, Zener diode, capacitor, resistor, inductor, battery, etc
- LCR meter equipped with 2 interchangeable test seats, adaptable for measuring both tiny precision components and high-power devices, simply plug and clamp, one button to quickly and automatically identify the component
- Multimeter transistor capacitor tester features a safe anti-burn protection to automatically discharge undischarged capacitors upon insertion to prevent accidental burning
- Diode Triode resistance inductance LCR meter features 1.44” full-color screen, ultra thin and mini palm size, rechargeable and portable, support of data transmission and firmware upgrade
- MOS NPN PNP E SR meter supports NEC infrared signal decoding for easy testing and maintenance of remote control equipment
- Transistor capacitor tester has an independent measurement channel for measuring diodes, 0.01-32V with pre-measurement power supply for precise results
LCR-P1 Transistor Tester is intended for detecting and analyzing the performance and characteristics of semiconductor components such as transistors, diodes, triodes, and field-effect transistors (FETs), high-precision and multifunctional, designed specifically for electronic engineers, technicians, and enthusiasts.
Equipped with a color screen, it allows for multi-parameter measurement of various components, automatically identifies the type and pin arrangement of the tested component, simplifying the operation process and enhancing testing efficiency.
Component Test Parameters
Transistor: 10
Diode: Forward voltage drop <4.5V
Voltage Regulator Diode:0.01-4.5V, 0.01-32V
Field-Effect Transistor: JFET, IGBT, MIOSTET
Unidirectional/Bidirectional SCR: Turn-on voltage <5V, gate trigger current <6mA
Capacitor: 25μF-100mF
Resistor: 0.01Ω-50МΩ
Inductor: 10μH-1000μH
Battery: 0.1-4.5V
Infrared Decoding: NEC protocol infrared code
SPECIFICATION
Model: LCR-P1
Display Screen: 1.44”
Battery Capacity: 300mAh lithium battery
Size: 2.8x3.4x1.1 in

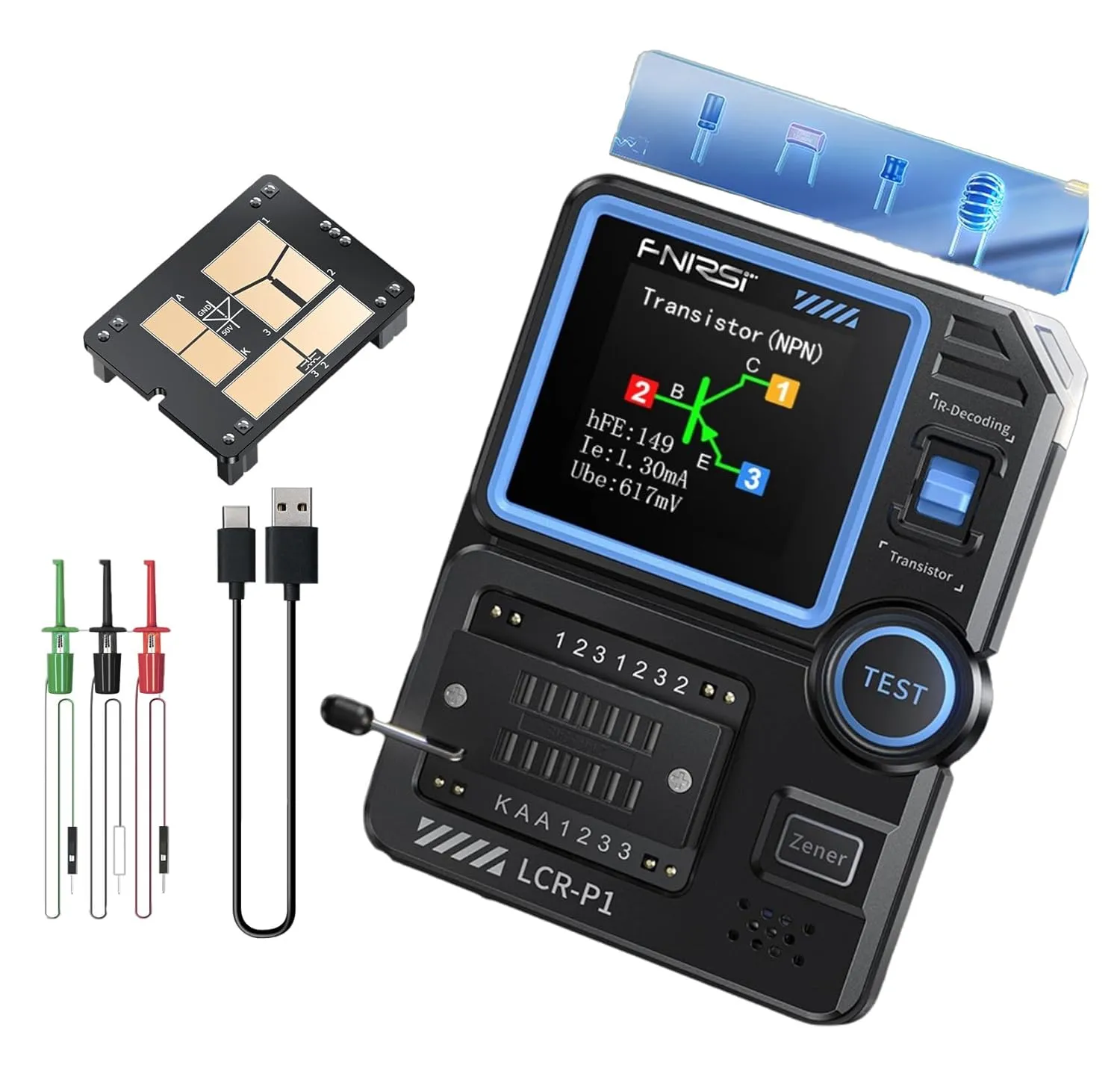

PACKAGE
1 x LCR-P1 Transistor Capacitor Tester
1 x Test Board
3 x Test Hook
1 x Data Cable
1 x User Manual
- Package Dimensions : 5.08 x 3.31 x 1.81 inches; 3 Pounds
- Date First Available : November 21, 2024
- Manufacturer : RQG
- Country of Origin : China
