- The ar9020 is a 9-channel receiver that gives you the option of adding extra channels simply by plugging a x-plus8 channel expander into its srxl port. this makes it ideal for scale modelers who like to push realism to the extreme with working accessories and lights, in addition to regular control functions.
- The ar9020 also includes two small remote receivers that let you take advantage of patented technology. the remote receivers allow the ar9020 to “see around” conductive materials in the model and maintain a solid signal in any attitude.
- The ar9020 full range 9-channel, compatible receiver features d technology and is compatible with all and jr aircraft radios that support technology, including: jr12x, 11x, x9503, x9303, dx10t, dx8, dx7s, dx7se, dx6i, dx5e and module systems.

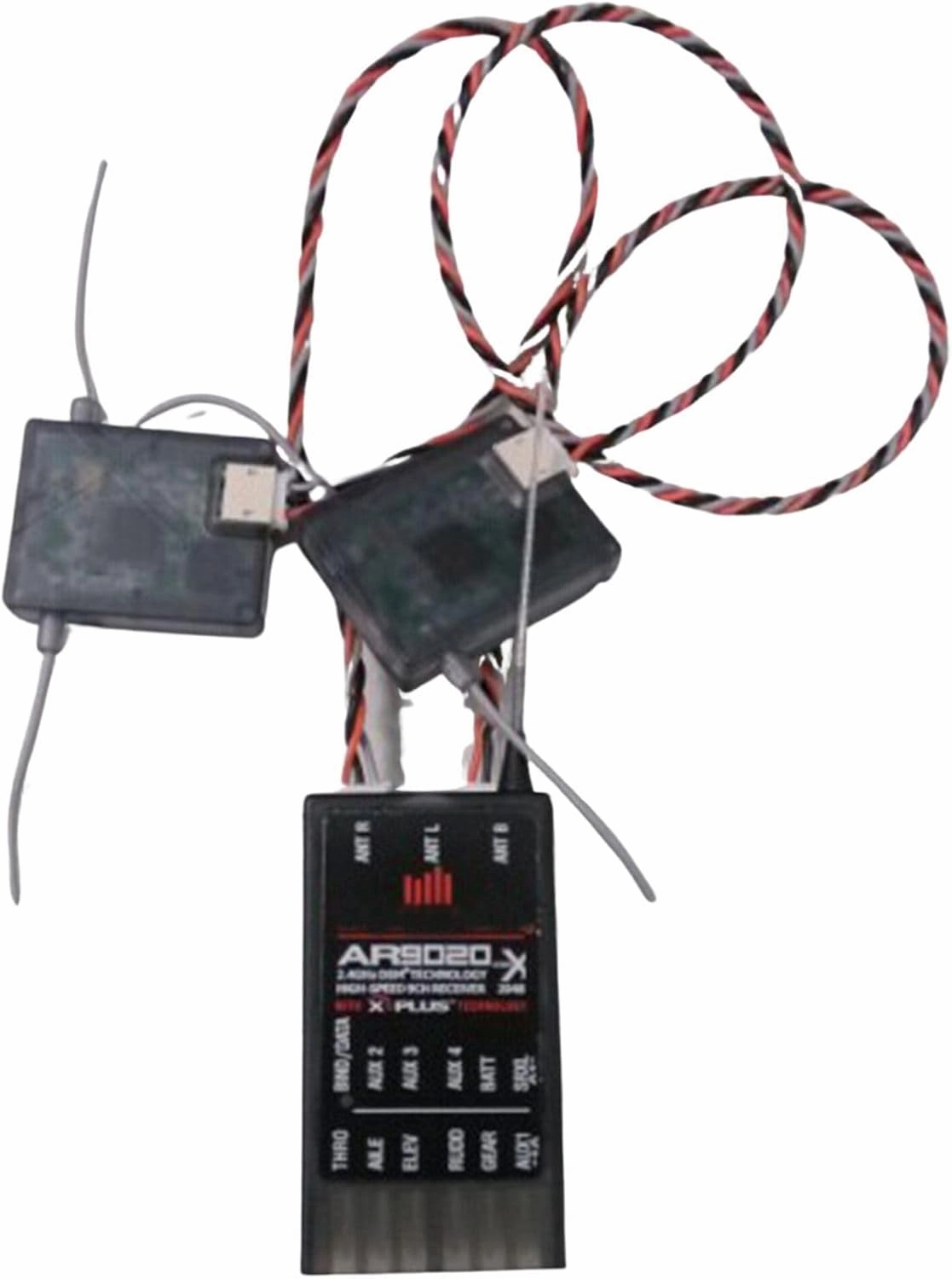

- Includes one internal and two remote receivers
- High-speed 11ms operation when used with capable transmitters
Specifications:
9-channel full range receiver
Failsafe system
Flight log and telemetry compatible (optional)
X-plus compatible
Quickconnect
2048 resolution
Number of channels:9
Modulation: digital spread modulation 2 and x xplus
Band:2.4ghz
Voltage range:3.5-9.6V
Antenna length:31mm
Applications:
for use in up to 9-channel aircraft, including:
all types and sizes of glow, gas and electric powered airplanes
all types and sizes of no-powered gliders
all types and sizes of glow, gas and electric powered helicopters
Note:
not for use in airplanes that have full carbon fuselages or that have significant carbon or conductive structures. we recommend using either the ar6255 or ar9300/ar9310 receivers for carbon fuselage applications.
Not compatible with the dx6 park flyer transmitter.
Package includes:
1 x Receiver(Set)
